Dust Collector Fume Hood

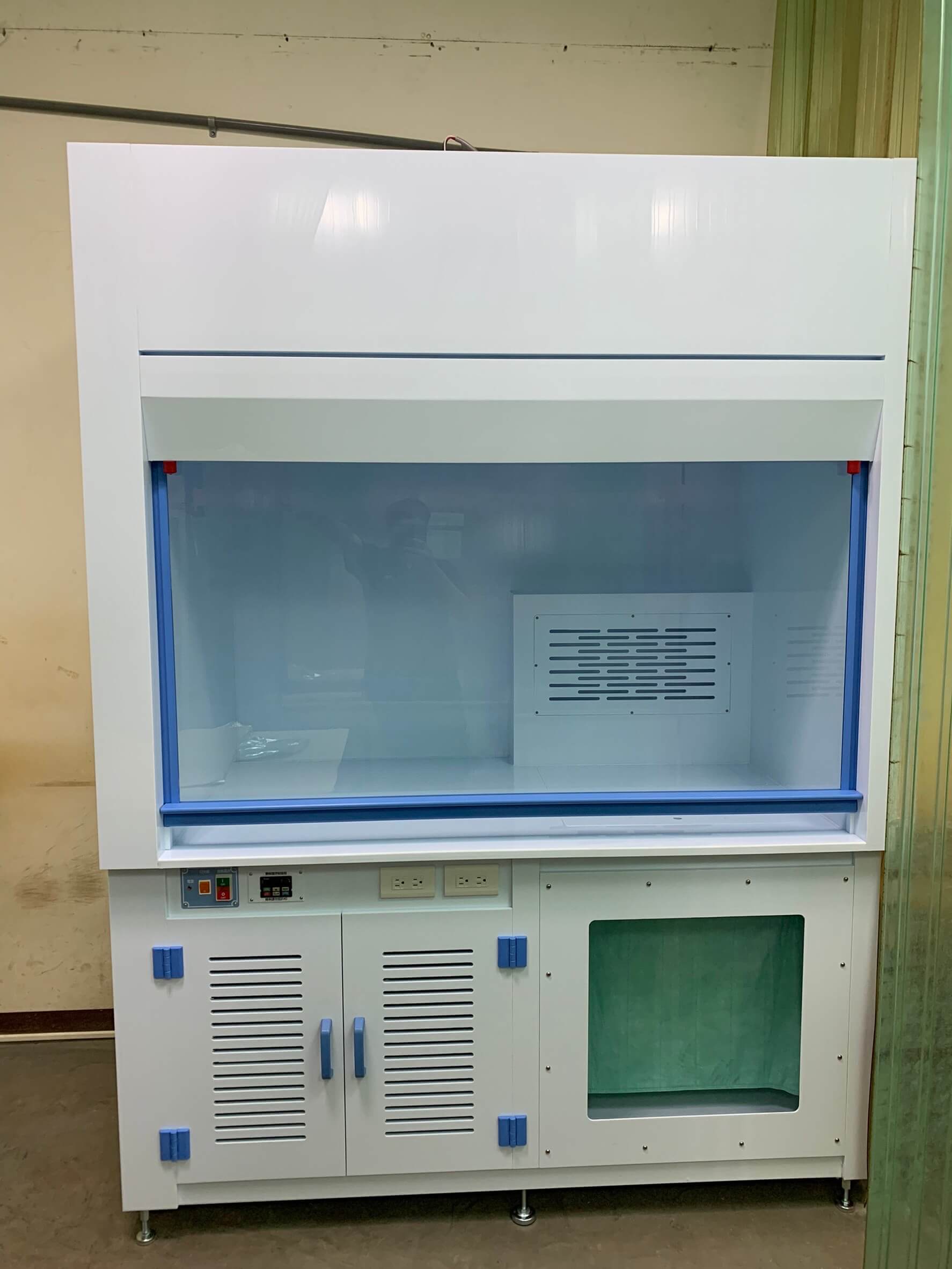

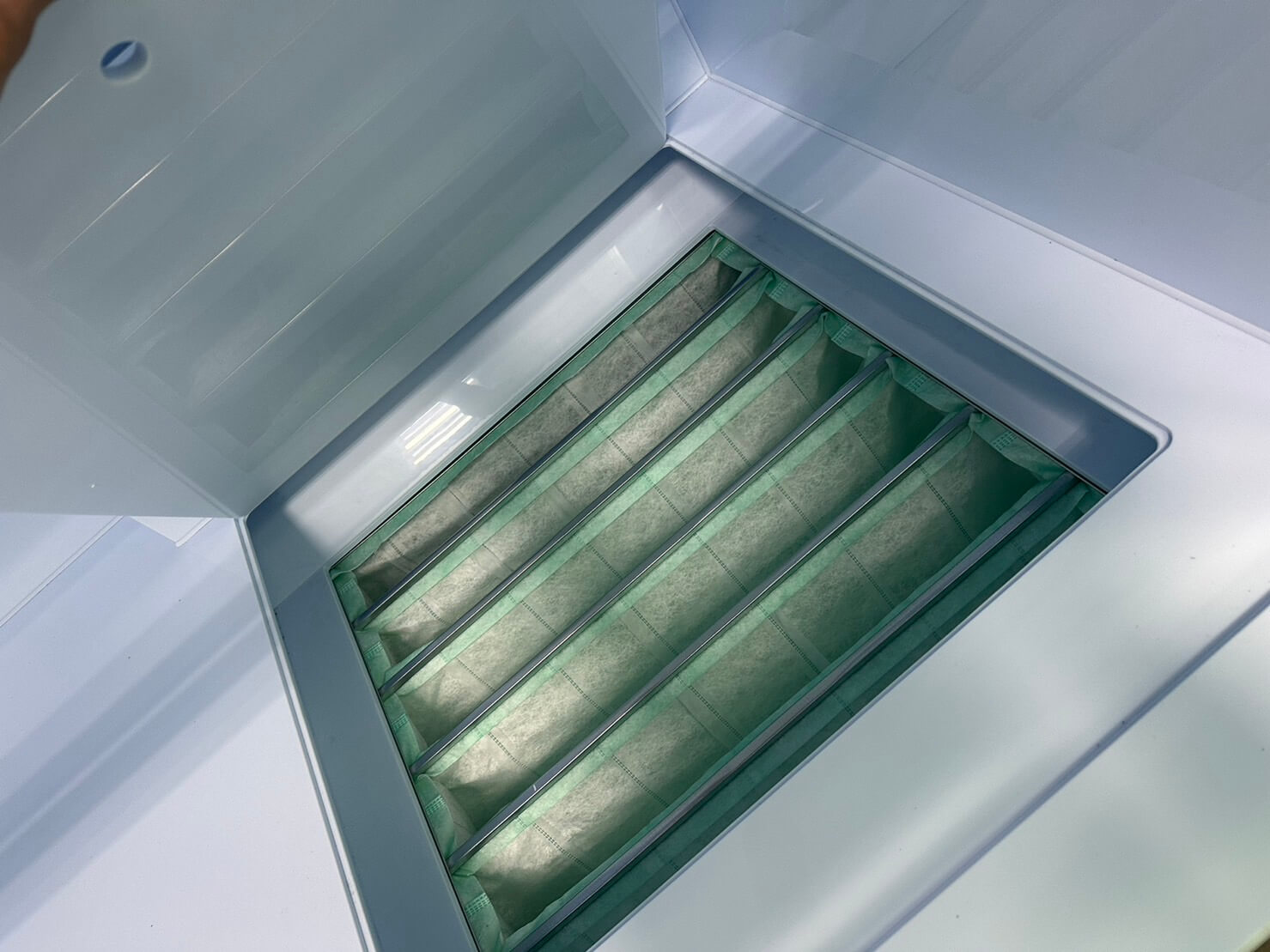

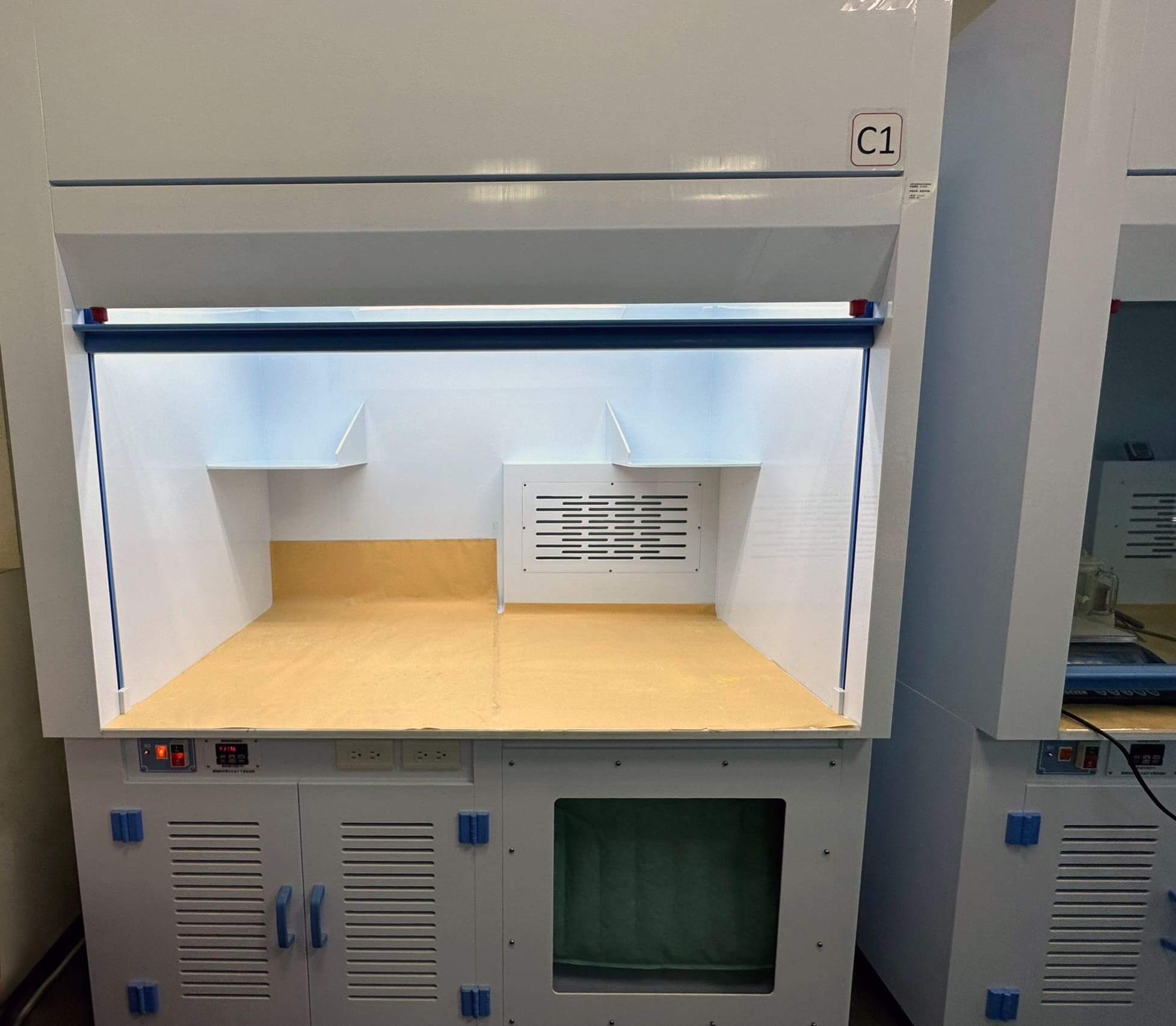

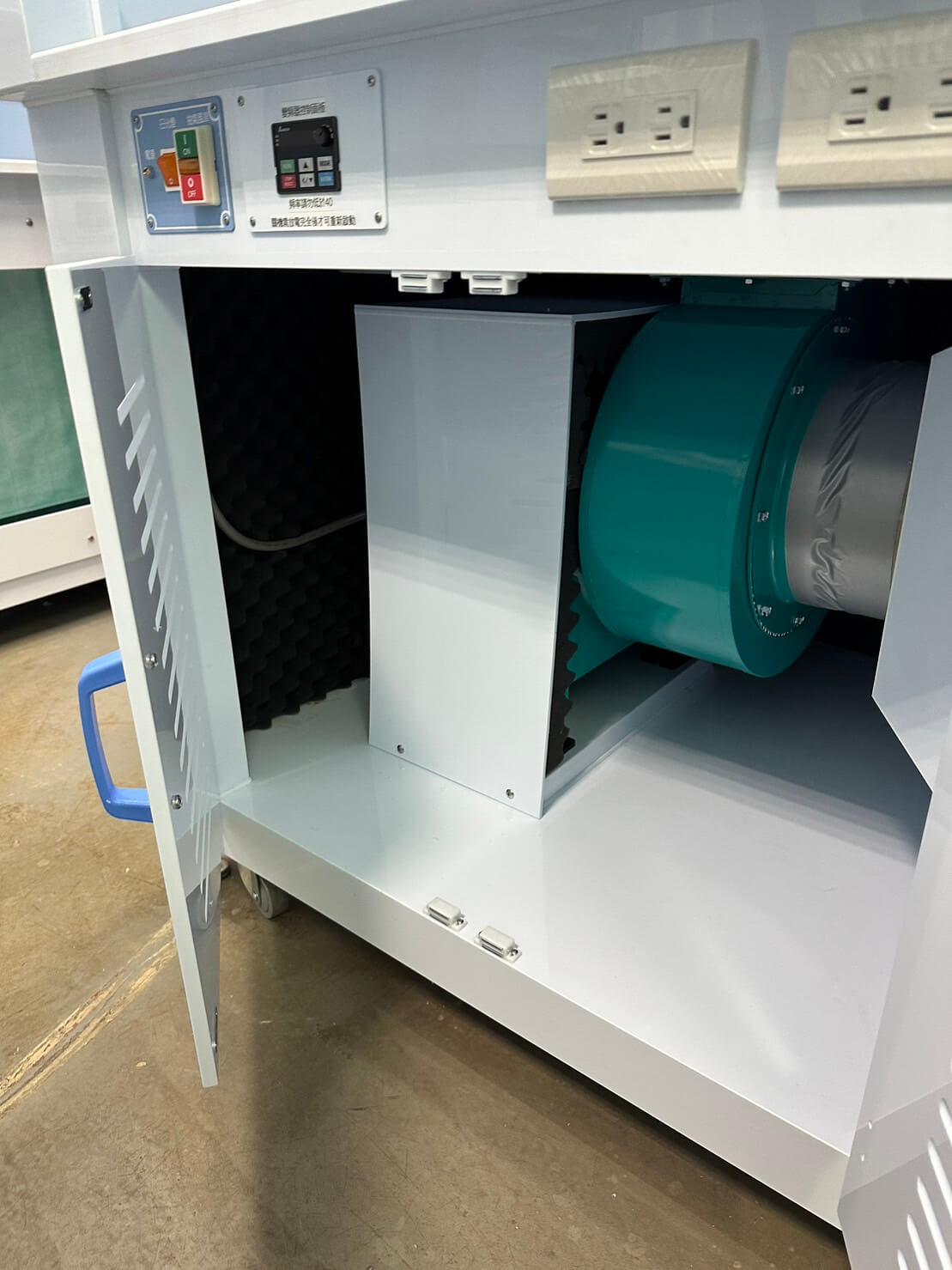

This safety equipment is designed to prevent the dispersion of dust during the extraction of powdered chemical agents. The dry powder fume hood is used to extract suspended particles generated during powder operations. The exhaust fan underneath the cabinet extracts the dust through a removable pleated back panel, filters it through a bag-type filter, and then releases it. Operators can reduce dust dispersion in the surrounding environment by operating the system through the glass window system.
Equipment size(mm) | 1800w*950d*2320h | 2100w*950d*2320h | 2400w*950d*2320h |
Interior size (mm) | 1620w*800d | 1920w*800d | 2220w*800d |
Exhaust collar | 8” | 10” | 10” |
Connection height(mm) | 2800h | ||
Opening area air velocity (m/s) | 0.5 | ||
Air volume (cmm) | 15 | 18 | 22 |

*尺寸皆可依需求設計製作
Cabinet exterior | Porcelain white, acid-alkali resistant, thickness 8-15mm or more PP board |
Exhaust hood | Porcelain white, acid-alkali resistant, thickness 8-15mm or more PP board |

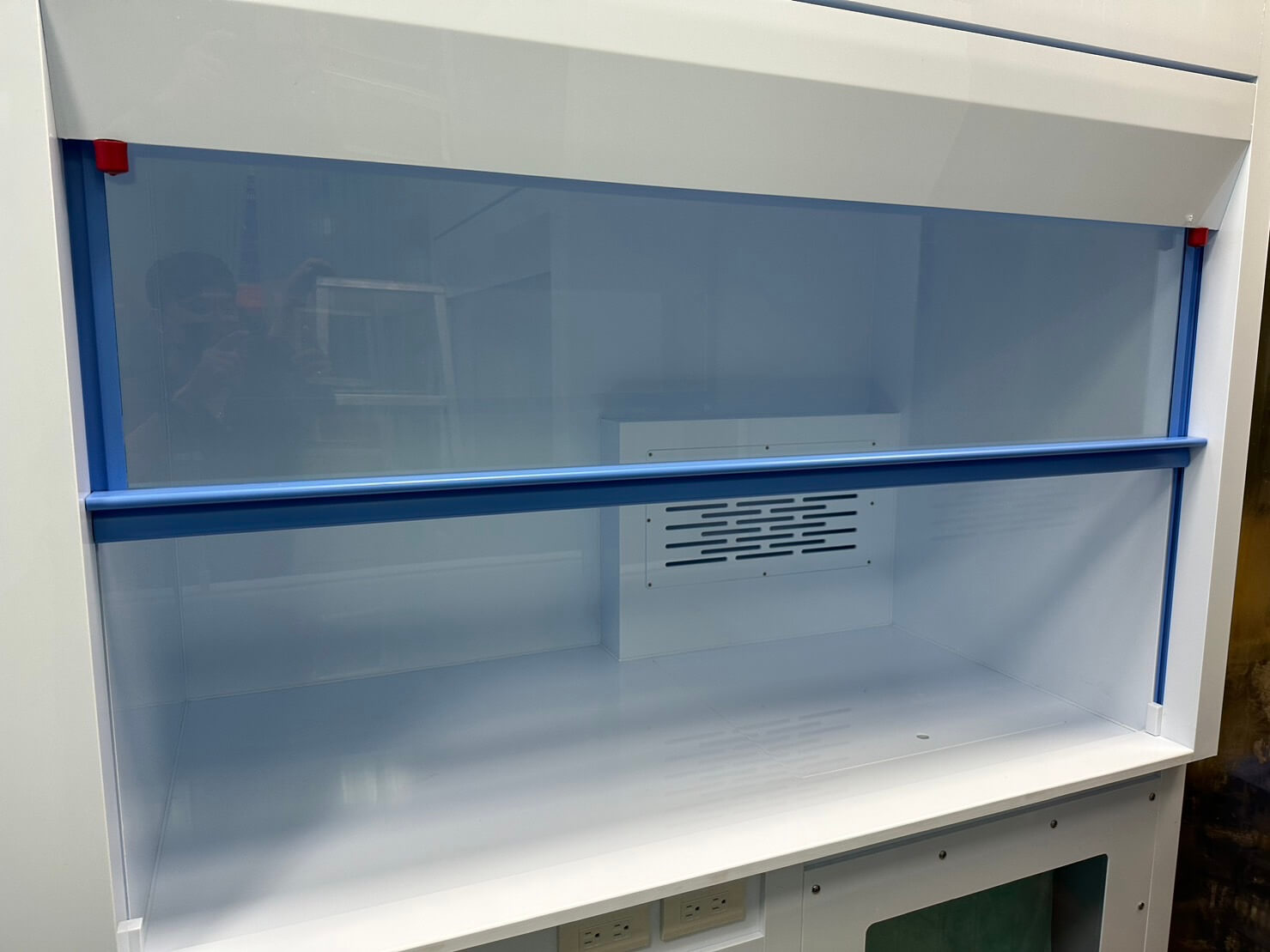

Window system | Tempered glass, 5mm thick or more, with continuous positioning and counterbalanced ABS plastic molded handles |
Operating countertop | Chemical-resistant black tabletop or PP white, acid- and alkali-resistant corrosion-resistant tabletop |
Control panel | Equipped with power indicator lights, fan motor switch, and daylight lamp switch |
Lighting fixtures | LED daylight lighting set, isolated from the cabinet interior |
Electrical outlets | AC 110V-15A duplex outlets and AC 220V-15A outlet |
