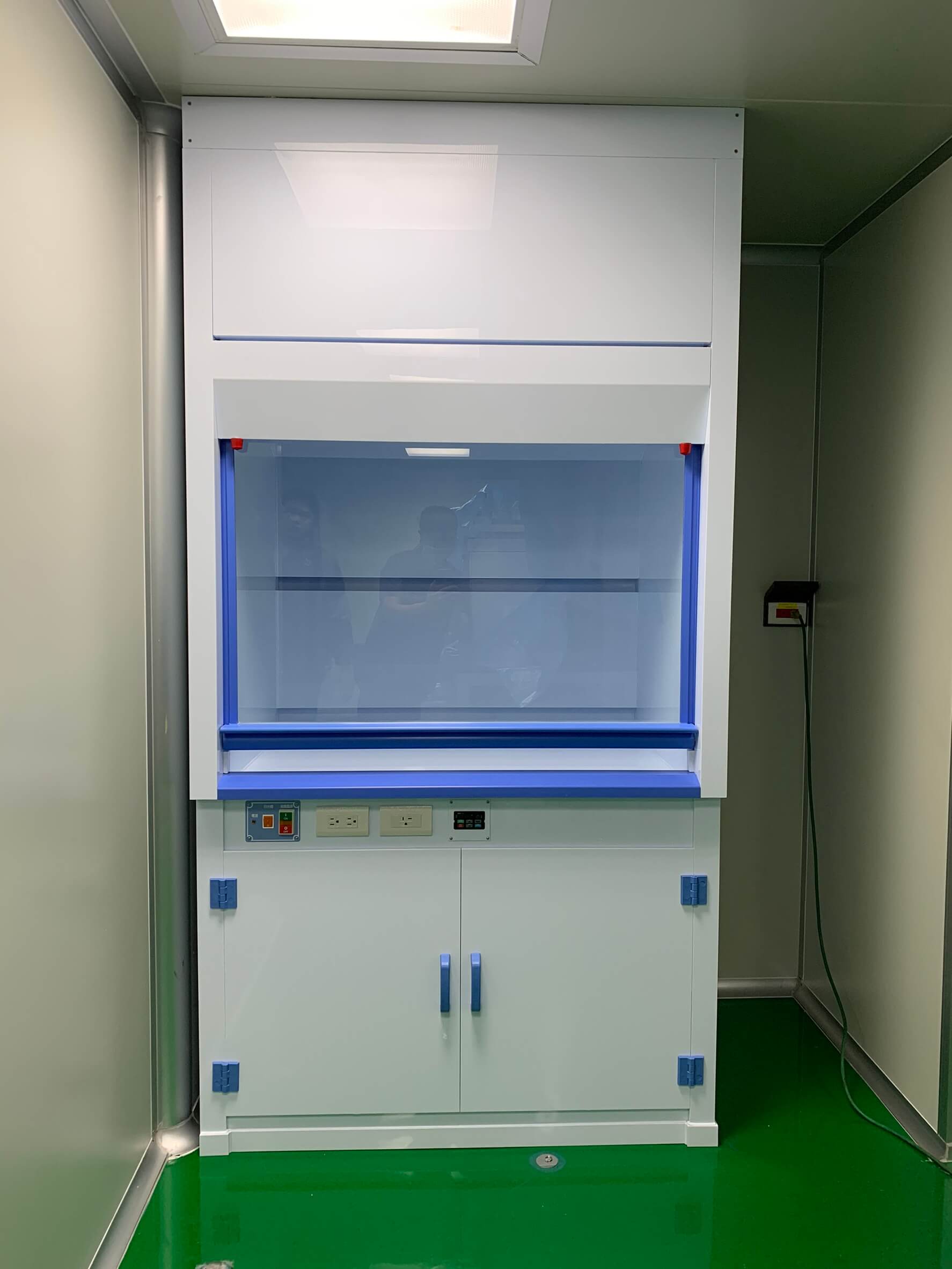

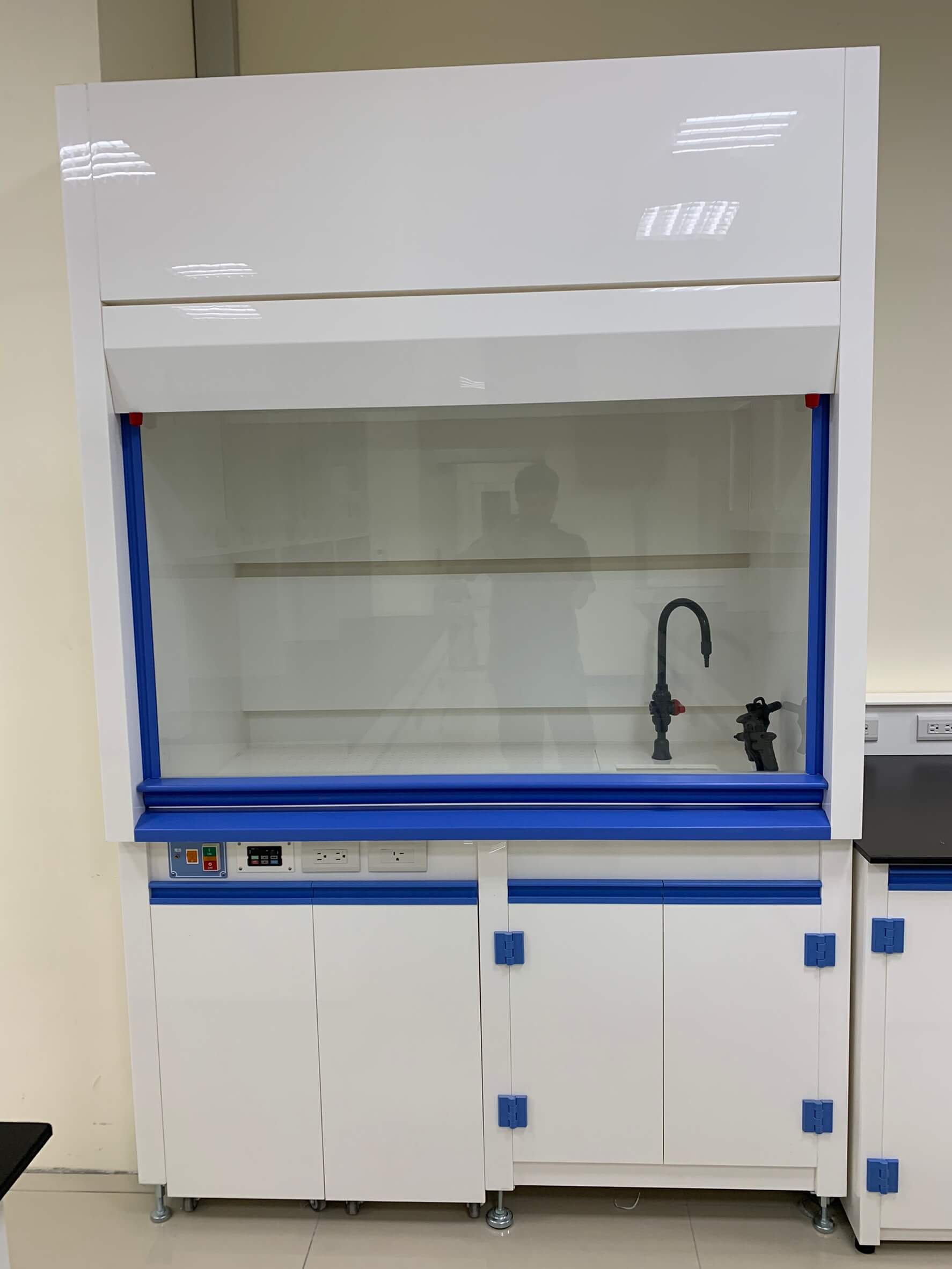

Adjustable Exhaust Fume Hood
The adjustable exhaust fume hood, when the window is moved up or down, will correspondingly change the exhaust volume of the fume hood, thereby achieving energy savings in indoor air conditioning. The effectiveness of this varies depending on the type of control valve used to adjust the airflow.
Equipment size(mm) 1200w*850d*2320h 1500w*850d*2320h 1800w*850d*2320h
Interior size (mm) 1080w*640d 1380w*640d 1680w*640d
Exhaust collar 8” 8”/10” 10”/12”
Connection height(mm) 2500h
Opening area air velocity(m/s) 0.5
Air volume (cmm) 15 18 22
*All sizes can be designed and produced as required
Cabinet exterior Porcelain white, acid-alkali resistant, thickness 8-15mm or more PP board
Exhaust hood Porcelain white, acid-alkali resistant, thickness 8-15mm or more PP board
Window system Tempered glass, 5mm thick or more, with continuous positioning and counterbalanced ABS plastic molded handles
Operating countertop Chemical-resistant black tabletop or PP white, acid- and alkali-resistant corrosion-resistant tabletop
Countertop drain PP cup sink, size: 120w*220d*120h mm
Gooseneck Faucet LAB Single-spout gooseneck faucet made of copper

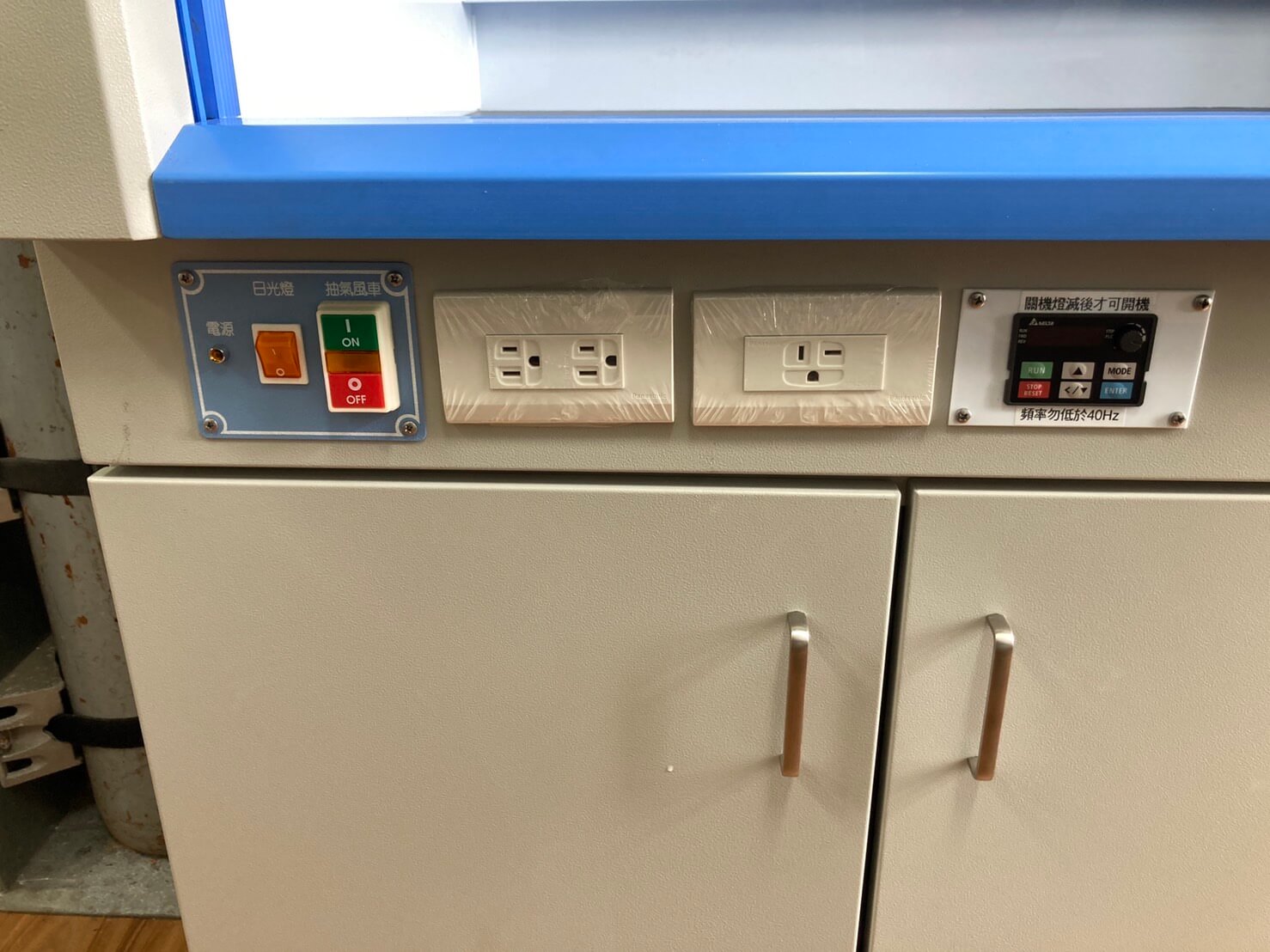

Control panel Equipped with power indicator lights, fan motor switch, and daylight lamp switch
Lighting fixtures LED daylight lighting set, isolated from the cabinet interior
Electrical outlets AC 110V-15A duplex outlets and AC 220V-15A outlet
Ventilation control system Airflow adjustment valve, displacement sensing device, and electrical control system.
*This product does not include a power exhaust device.


*Please do not conduct experiments that generate high heat inside the cabinet.*


Proportional Electric Valve





Phoenix Controls Venturi valves





Variable Frequency Controller
